Features:

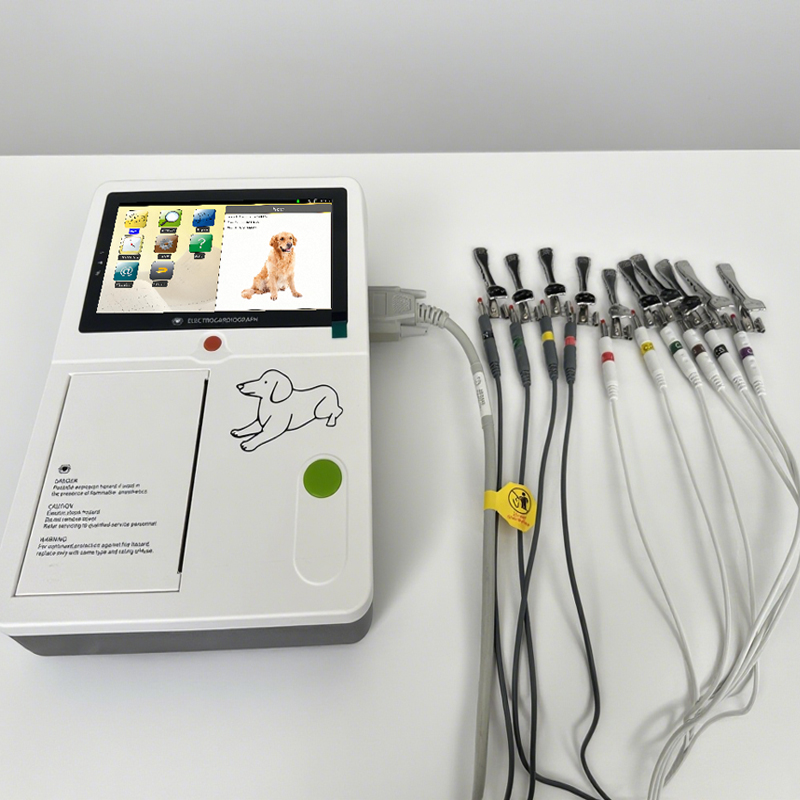

• 12 lead ECG synchronous sampling system.

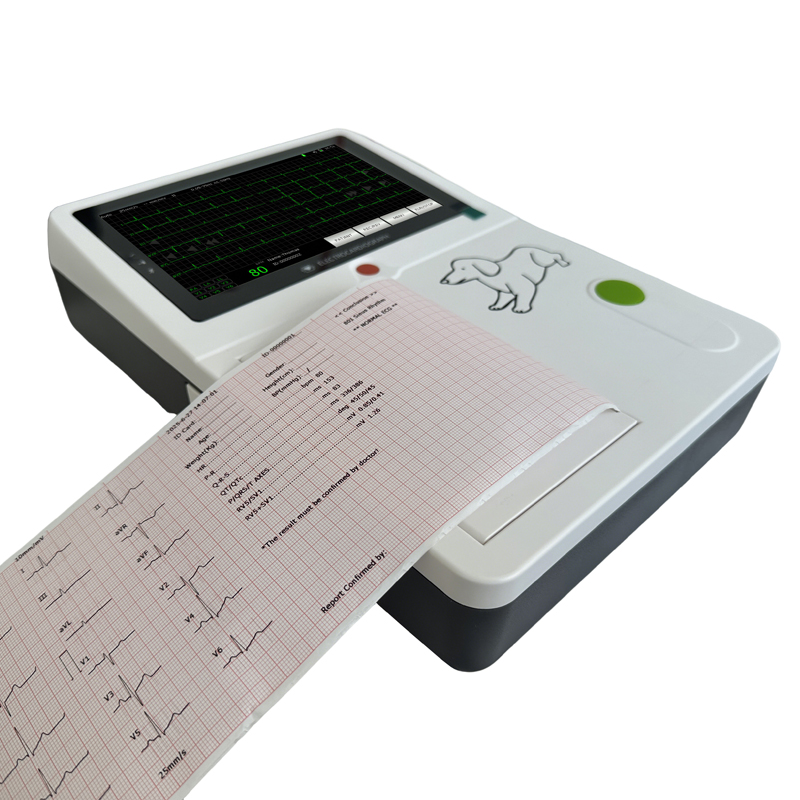

• Thermal printer with 112mm print paper, synchronization print.
•7"color touch-screen, both push button and touch operation.
• Automatic measurement, calculation, analysis, waveform freezing.
. Support USB flash disk & SD memory.
• Data transmitting to PC via USB.
• Patient's information can be input.
• Historical data can be reviewed and printed.
• Built-in rechargeable li-ion battery, AC/DC power conversion.
• Sleep mode to save energy and extend TFT screen life.
. Support USB Keyboard/Mouse.
• Lead off & lack off paper detection function.
• 7 level printing thick can be chosen.
. Adapt to 110-230V, 50/60Hz AC power supply.
| Parameter | Specification | Parameter | Specification |
| CMRR | ≥ 100dB, with AC Filter | Calibrating voltage | 1mV± 3% |
| Input circuit | Floating, Protection against defibrillator effect | Voltage tolerance | ± 500mV |
| Input circuit current | ≤ 0.1 μA | Time Constant | > 3.2s |
| Resolution | 12bit/1000Hz | Frequent response | 0.05Hz~150Hz |
| Operation mode | Manual/Auto | Noise level | ≤ 15 μVp-p |
| Filter | AC. ECG Filter | Threshold | ≤ 20μV |
| Drift filter | Anti-Drift System | Paper speed | 12.5mm/s, 25, 50mm/s (± 3%) |
| Input impedance | > 50MΩ | Sensitivity | 5, 10, 20mm/mV |
| Patient current leakage | < 10μA | Recorder | High resolution thermal printer |
| Rated voltage | 100V-230V 50Hz/60Hz | Battery | Li-ion Battery(11.1V,2200mAh) |
| Recording paper | Thermal recording paper | Dimension | 295*205*73mm |
